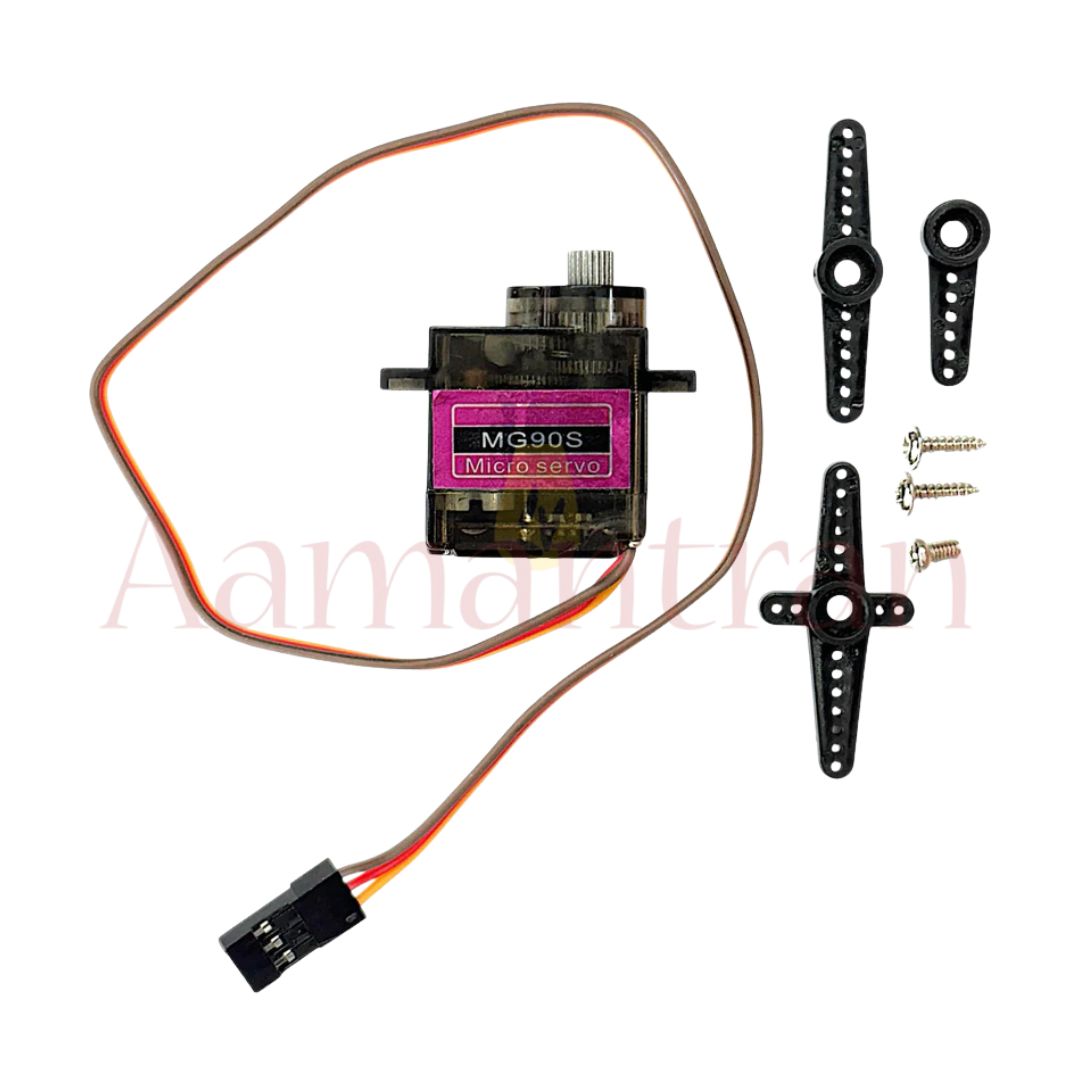

MG90S Servo Motor For Projects

Description

The MG90S Servo Motor is a high-performance, compact servo motor designed to deliver precise angular movement for a wide range of DIY projects, robotics, and RC models. With its efficient stall torque and quick response time, this servo motor is perfect for applications requiring accurate positioning and speed control.

• Model: MG90S – Known for its reliability and compact design, this servo motor is widely used in robotics, RC vehicles, and automation systems.

• Weight: At just 13.4g, this lightweight motor is perfect for projects where space and weight are crucial.

• Operating Voltage: Operates within a voltage range of 4.8V to 6.6V DC, ensuring versatility for various applications and power sources.

• Speed:

  • 4.8V: 0.10 sec/60°

  • 6.6V: 0.08 sec/60°

• Stall Torque:

  • 4.8V: 1.8 Kg-Cm

  • 6.6V: 2.2 Kg-Cm
    Offering reliable power for precise movements in applications like robotic arms, RC cars, and mechanical systems.

• Operating Temperature: Designed to operate in temperatures ranging from 0 to 55°C, making it suitable for both indoor and outdoor projects.

• Dead Band Width: 1 μs, ensuring smooth and precise movement with minimal noise.

• Rotational Degree: The motor offers 180º rotation, providing ample movement range for most servo-driven systems.

• Servo Plug: JR style, compatible with most control systems and RC receivers.

• Cable Length: Comes with a 25 cm cable for easy integration into projects.

• Dimensions:

  • Length: 12.4 mm

  • Width: 22.8 mm

  • Height: 32.5 mm

Perfect for robotic actuators, model control systems, automated systems, and motion control projects.
